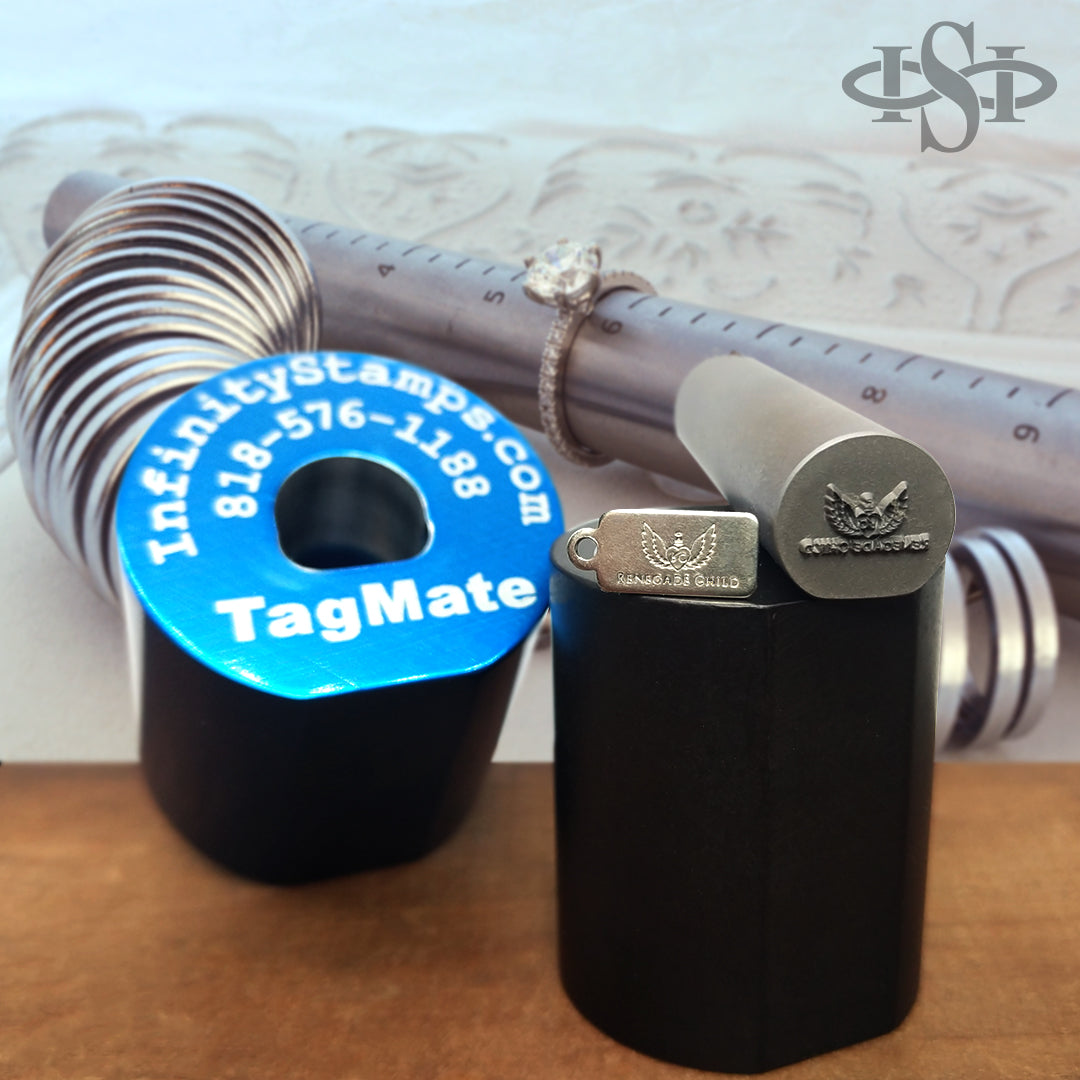

Custom TagMate System

  • $240.00
    Unit price per

Qty discounts for Jewelry Tags available! Please email or call to place your order.


THIS TAGMATE SYSTEM INCLUDES:

  1. TagMate Base to match the selected tag shape
  2. Fitted Cap
  3. TagMate Custom Stamp

FEATURES

  • A recessed "bed" is engraved to snugly hold the Jewelry Tag Design of your choice in place for uniform marks.
  • The cap features an opening designed to allow easy insertion of the included TagMate Stamp, specifically designed and produced to fit only one way.
  • After the TagMate stamp is inserted, it has no wiggle-room and lands directly onto the center of the selected tag.
  • This marking method ensures accurate alignment of the stamp with the tag, so you can be sure of an excellent stamped mark, every time.

OTHER DETAILS

  • Dimensions: The base is 1-1/4” in diameter by 1-1/2” high and the cap is 1-1/2” in diameter by 1-1/2” high.
  • Additional TagMate Stamps are available in the TagMate System collection.
  • Additional Bases are available for marking several Jewelry Tag patterns in the TagMate Parts collection.
  • Custom made for marking precious metals
  • Used with 16 oz. Ball-Peen Hammer or Mallet
  • Safety note - we recommend use of safety goggles when using these products.
Tag Material Gauge Metallic Composition
14k Gold Plated 21 Brass (85% Copper / 15% Zinc)
CDA# 230 Plated in 14k Gold
Sterling Silver 23 Pure Sterling Silver
Brass 22 Red Brass (85% Copper / 15% Zinc)
CDA# 230
Nickel Silver 22 Nickel Silver (65% copper, 17% nickel and 18% zinc)
CDA#752
Copper 22 Copper (99.9% Pure) CDA# 110

Tag Shape Size
Tag A (Circle) 10mm diameter
Tag B (Small Rectangle) 4.5mm x 9.5mm
Tag C (Large Rectangle) 6mm x 11.5mm
Tag D (Large Oval) 6.4mm x 11mm
Tag E (Wide Oval) 4.7mm x 12.5mm
Tag F (Small Oval) 4.8mm x 8mm
Tag G (Heart Charm) 10.5mm x 10.7mm
Tag H (Oval) 13mm x 6.7mm
Tag I (Large Circle) 11.5mm diameter
Tag J (Heart) 12mm x 10.2mm

AVAILABILITY

Custom Made
Ships in approx. 6 business days

THE TAGMATE MARKING METHOD ADVANTAGE:

  1. A "Do It Yourself" task -- Saves time and costs
  2. Simple, safe and easy to use
  3. Allows for larger, clear logos on any tag
  4. Eliminates tag wastage
  5. Ensures professional looking tags
  6. Accommodates multiple tags of various sizes & shapes with additional available bases (sold separately).

HOW TO USE THE TAGMATE STAMP AND TAGMATE:

  1. Set the TagMate base on a workbench.
  2. Place a Jewelry Tag inside the custom engraved recess
  3. Cover the base with the cap.
  4. Insert the TagMate Stamp with its flat side facing forward into the opening in the cap.
  5. Hold the cap with one hand and with your other hand strike the stamp with a hammer.

Repeat this process to mark as many Jewelry Tags as needed, being assured that every tag will be uniformly marked in its center.
